Requires DN525 Rubber Ring Iplex Code: GERSEW525
Product Data Sheet
View
CAD PDF
View

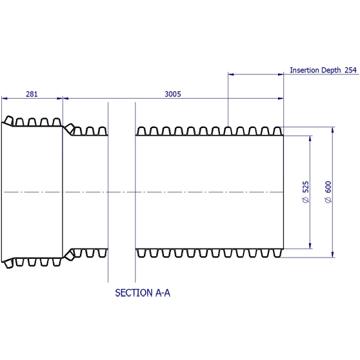

Line Drawing Dimensions
View
Product Properties
Size/Diameter
525 mm
Rating
Non Pressure
Length
3.0 m
Primary Material
Polypropylene
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black with yellow internal liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
16
Allowable Operating Temperature - Degrees
Up to 50°C. Re-rating is applied for temperatures > 20°C
Minimum Radius of Curvature
172 m
Socket Deflection
up to 2°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 years yr
Maximum Support Spacing of Pipe Graded
2.75 m
Maximum Support Spacing of Pipe Vertical
5.50 m (Reference AS/NZS 2033, applicable to above ground installations)
Markings
Iplex Pipelines, DN525, SN8, PP, Date of Manufacture, BlackMax® x 3 m, GR8525C
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Yield Strain
8%
Yield Stress
31 MPa
Tensile Modulus
31 MPa
Hardness Shore D
60
Poissons Ratio
0.45
Ring Bending Modulus - 3mins
1300 MPa
Ring Bending Modulus - 50yrs
342 MPa
Thermal Properties
Coefficient of Thermal Expansion
15 x 10⁻⁵ / ℃
Thermal Conductivity
0.22 W·m⁻¹·K⁻¹
Specific Heat
1700 J/kg/°C
Vicat Softening Temperature
157°C
Flammability
Flammable
Dimensions
Size/Diameter
525 mm
Weight
44.9 kg
Crate Quantity
3
Crate Weight
99 kg
Wall Thickness
39.0 mm
Socket Depth
210 mm
Witness Mark Detail
5th Rib
Socket Length
260 mm
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes & fittings for drainage & sewerage applications'
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
Creep Ratio
3
Warranty
I Year
