GWR25302290

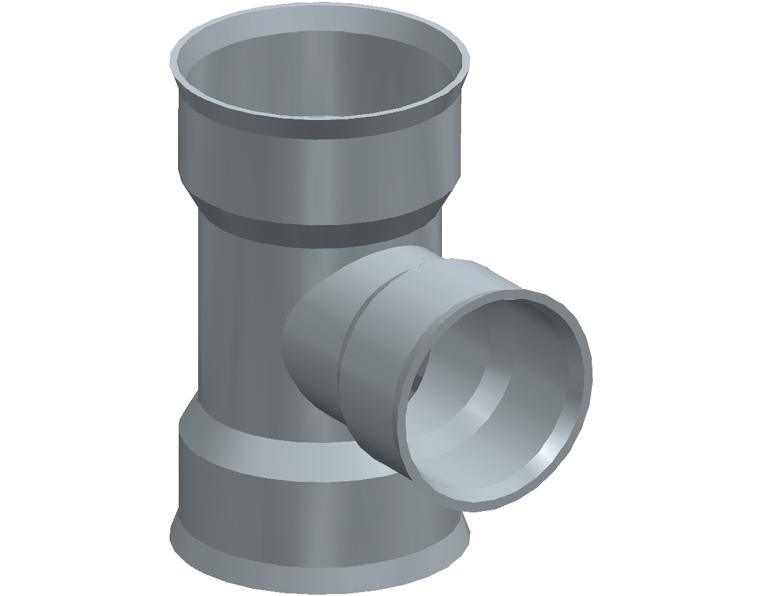

BlackMax® PVC Reducing Tee DN300 x DN225 FFF Max RRJ Black/White

Enquire

Overview

  • Allows 90° branch connection
  • Polypropylene
  • Compatible with BlackMax® pipe
  • RRJ
  • Lightweight
  • Corrosion resistant
  • Provides complete plastic system with BlackMax® pipes
Additional Information Requires 2 x DN300 BlackMax® Rubber Ring Iplex Code: GERSEW300 and 1 x DN225 BlackMax® Rubber Ring Iplex Code: GERSEW225
Product Data Sheet Artboard View

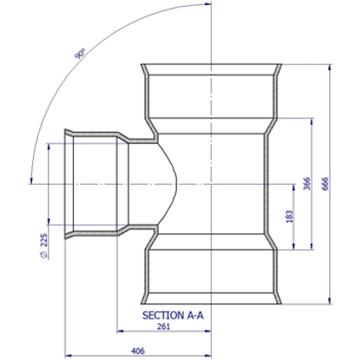

Line Drawing Dimensions Artboard View

Product Properties

Size/Diameter 300 mm
Rating Non Pressure
Degree 90°
Primary Material PVC
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black external wall with white internal bore
Minimum Cover Depth SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre - Iplex Lubricant 28
Allowable Operating Temperature - Degrees Up to 50°C. Re-rating is applied for temperatures > 30°C
Socket Deflection up to 2°
Markings Iplex > BlackMax® > Reducing Tee > DN300 RRJ x DN225 RRJ x 90° > PVC > Date of Manufacture > GWR25302290

Mechanical Properties

Density - Specific Gravity 1.45 kg/m3

Dimensions

Size/Diameter 300 mm
Weight 15 kg

Standards & Accreditations

Product Standard AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
