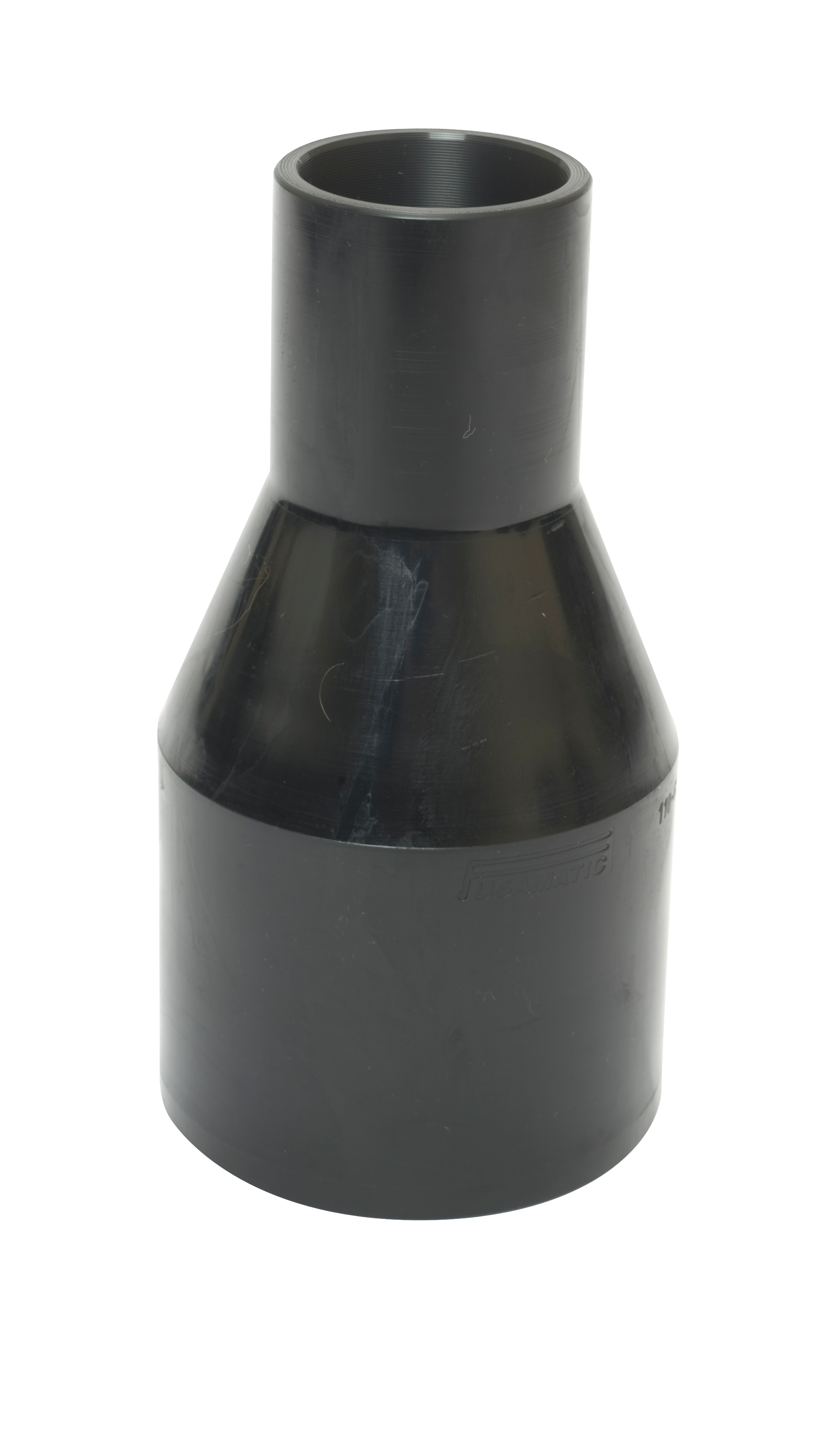

Poly Concentric Reducers DN200 x 160 SDR17 Long Spigot
PER17200160LS
Overview
- Lightweight
- Durable
- Long Service Life
- Environmentally Friendly
- Corrosion and Chemical Resistance
Technical Guide
View
Product Properties
Size/Diameter
200 mm
Rating
SDR17
Primary Material
POLYETHYLENE
Joint Type
Electrofusion or Butt-weld
Colour
Black
Allowable Operating Pressure - 20 Degrees Celsius
1250 kPa
Unprotected UV Exposed
99.9% UV stable (black only)
Mechanical Properties
Density - Specific Gravity
0.95
kg/m3
Hardness Shore D
63
Thermal Properties
Thermal Conductivity
0.38w/M.k
Dimensions
Size/Diameter
200 mm
Weight
2.3 kg
Standards & Accreditations
Product Standard
AS/NZS 4129 'Fittings for polyethylene (PE) pipes for pressure applications'
Product Approvals and Appraisals
ISO TYPE 5 - AMI 20303
Environmental Accreditation
https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
