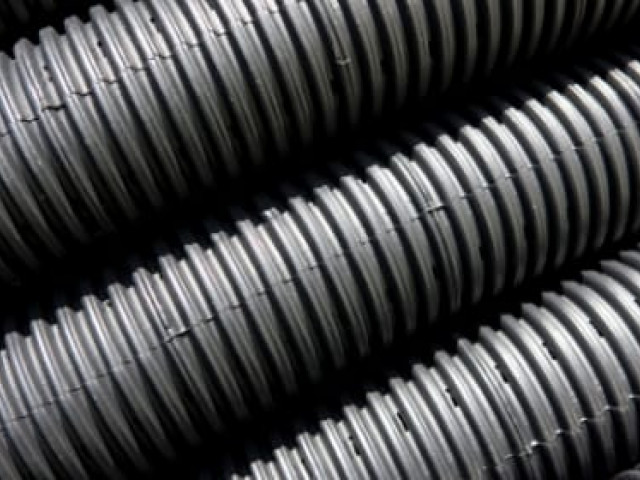

100 SN20 CL1000ENVIRODRAIN PVC100M SLOTTED WITH FILTERSOCK
DN100 x 100m SN20 Class 1000 Envirodrain PVC Slotted with Filtersock
DSS100100CL1P
Overview
- Lightweight
- Flexible
- Easy to install
- Corrosion resistant
- Robust
- Effective drainage
Additional Information
Filter Sock|
Under some conditions, fine sand or soil particles may flow into the pipe with the water and result in reduced flow in a pipe laid to a shallow gradient. Under these conditions it may be advantageous to use a woven fabric filter 'sock'
Under some conditions, fine sand or soil particles may flow into the pipe with the water and result in reduced flow in a pipe laid to a shallow gradient. Under these conditions it may be advantageous to use a woven fabric filter 'sock'
Product Data Sheet
View
Product Properties
Size
100MM
Rating
CL1000
Length
100M
Primary Material
PVC
UOM
COIL
Colour
White with white filtersock
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Socket Deflection
!BLANK!
Maximum Support Spacing of Pipe Graded
1.2m (If longer spans required, refer Iplex Sales Engineer)
Mechanical Properties
Ultimate Tensile Strength
N/A
Yield Strain
10%
Yield Stress
25 MPa
Compressive Strength
32MPa
Tensile Modulus
3000MPa - 3300MPa
Poissons Ratio
0.4
Thermal Properties
Coefficient of Thermal Expansion
1.8 x 10-4/℃
Specific Heat
1047 J/kg/℃
Flammability
Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability
13
Fire Index - Smoke Developed
3
Fire Index - Spread of Flame
7
Fire Index - Heat Evolved
6
Dimensions
Size
100MM
ID
86
Weight
62kg
Standards & Accreditations
Product Standard
Envirodrain® is manufactured to the dimensions specified in the Australian Standard AS2439.1 "Perforated Drainage Pipe and Associated Fittings".
